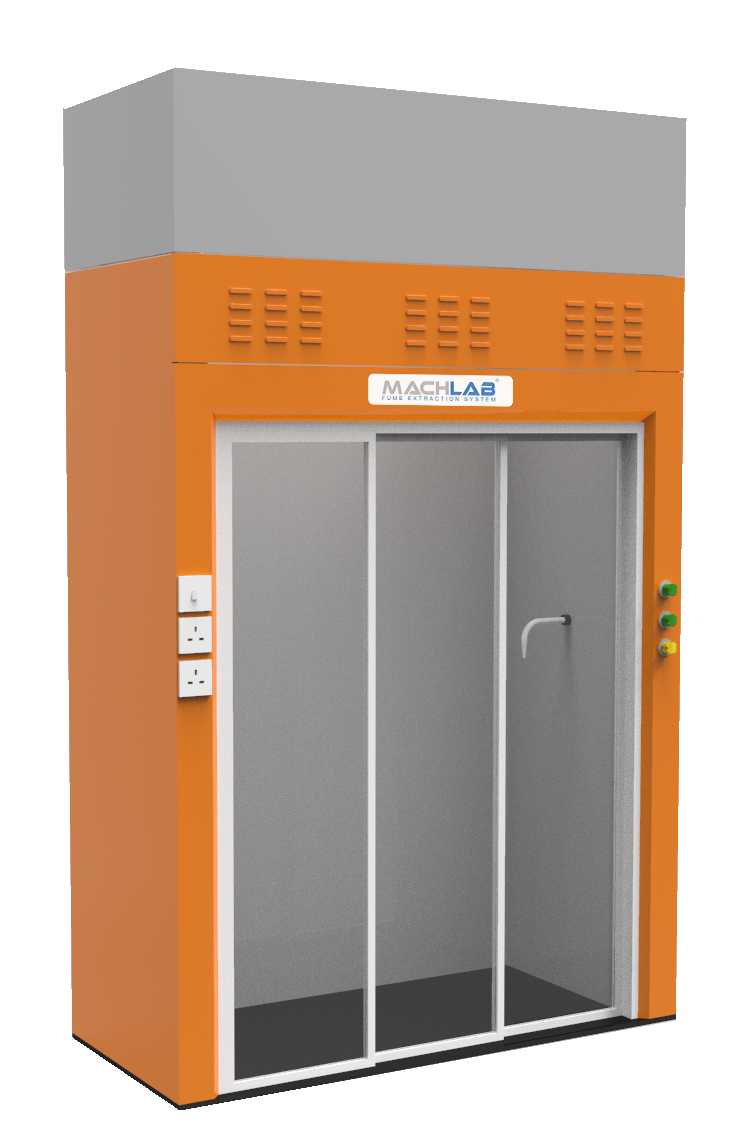

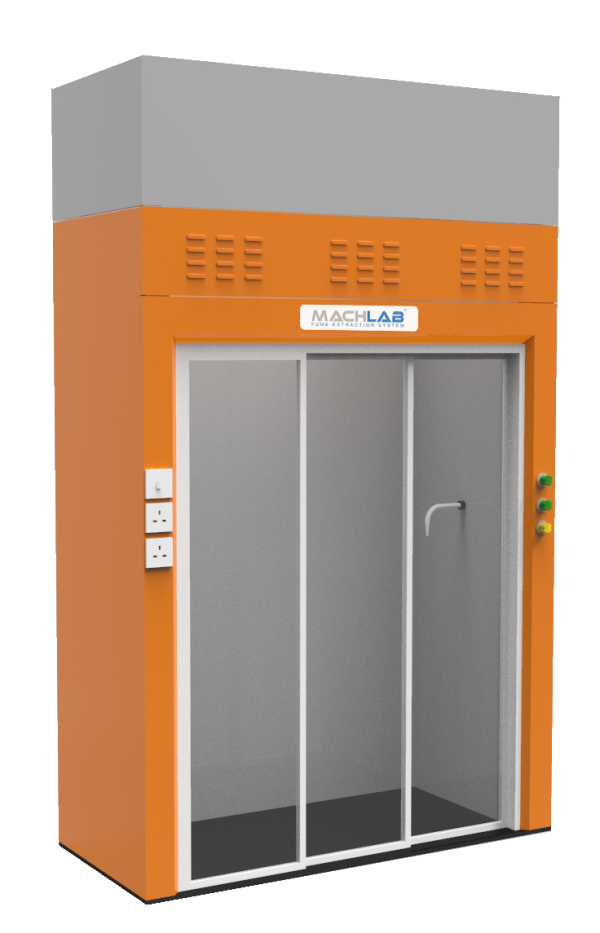

Walk-in Fume Hood

Walk-in fume cupboard is applicable for handling tall apparatus and large hazardous containers. The sash can be horizontal/vertical sliding for ease of access.

Category:

Specifications

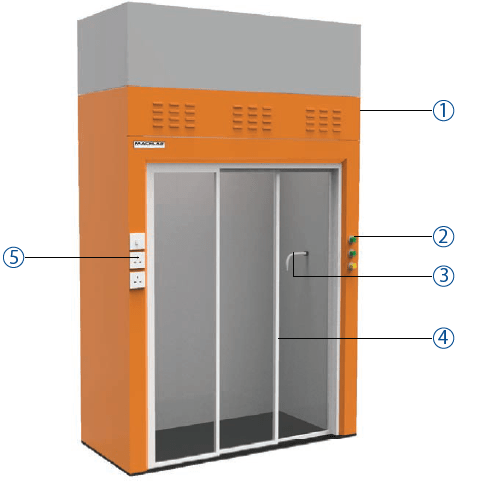

1. Body
2. Service fixtures
3. Water faucet
4. Sash
5. Electrical socket

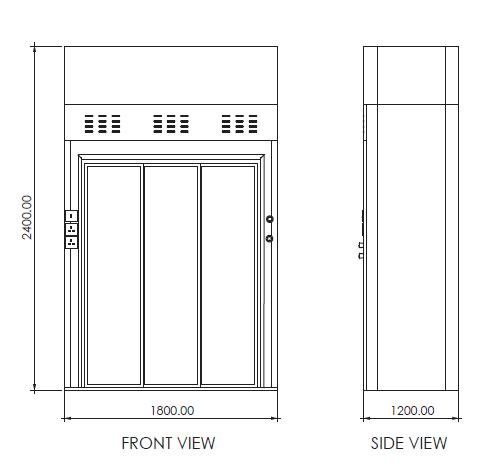

Dimensional

Features

  • Industrial-grade electro-galvanized steel construction with epoxy powder finish
  • High corrosion resistance
  • 3-part vertical/horizontal sliding sash for ease of access.
  • Customisable components such as service fixtures and water faucets.
  • Customisable length with the minimum length of 1800mm (6’).
  • Available in two materials; electro-galvanized steel and polypropylene.

Customisation

Product Details



Model WIFH-6-MS

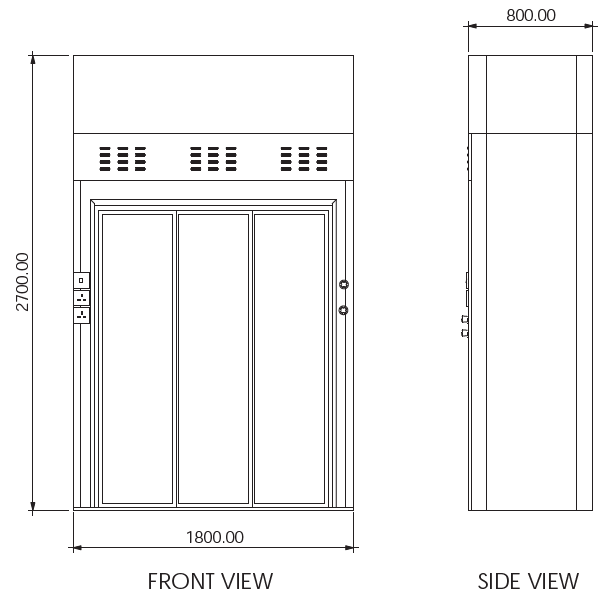

External Dimensions (mm) 1800(L) x 800(W) x 2700(H)
*custom length available upon request
Internal Dimensions (mm) 1550(L) x 630(W) x 2350(H)
Material Electro-galvanized steel sheet with epoxy powder coating finish
Sash 5mm(Thk) Clear tempered glass/Polycarbonate/Acrylic
Standard Feature -1 unit cold water inlet
-1 unit inert gas inlet
-1 unit cup sink on side wall
-3 units BS Electrical socket on side panel
Interior Fiber-reinforced polyester (FRP)
Base Electro-galvanized steel sheet with epoxy powder coating finish
Power Consumption 10W (Lighting)
Volumetric Flow Rate 6ft: 1200 – 1500 cfm
Face Velocity 0.5 m/s
