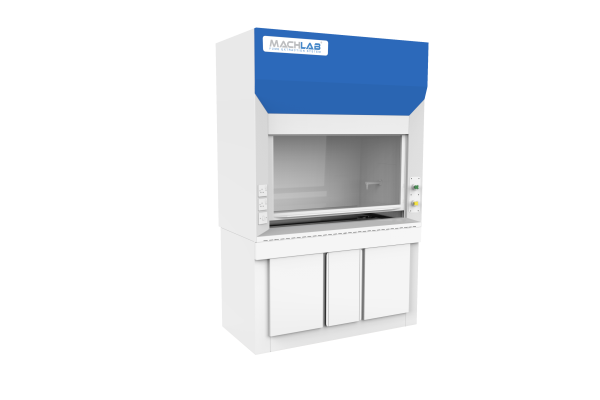

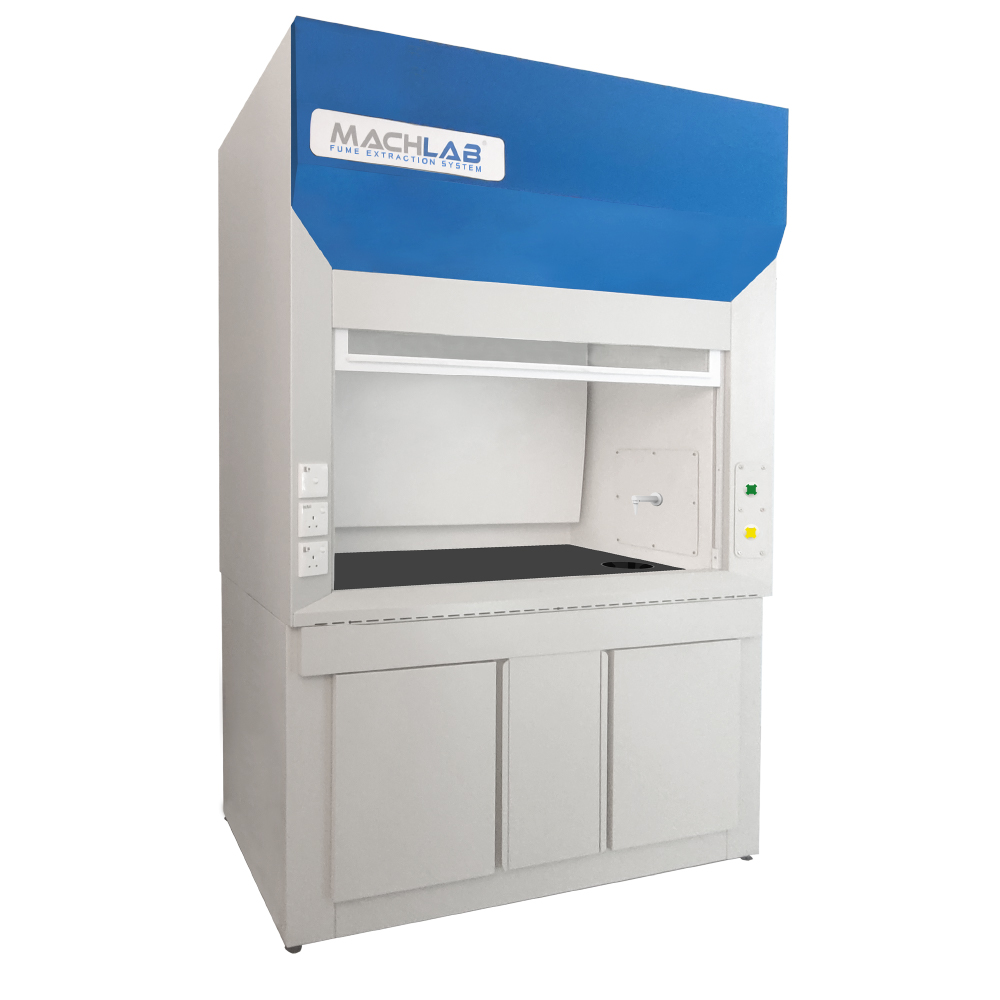

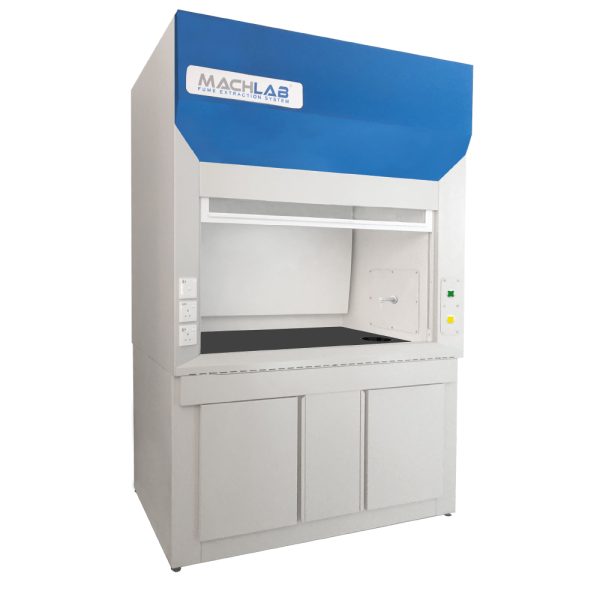

General Purpose Fume Hood
General purpose fume hood is a ducted fume hood which is applicable for most common lab applications such as boiling, evaporation, drying and other applications that emits harmful fumes and vapours.

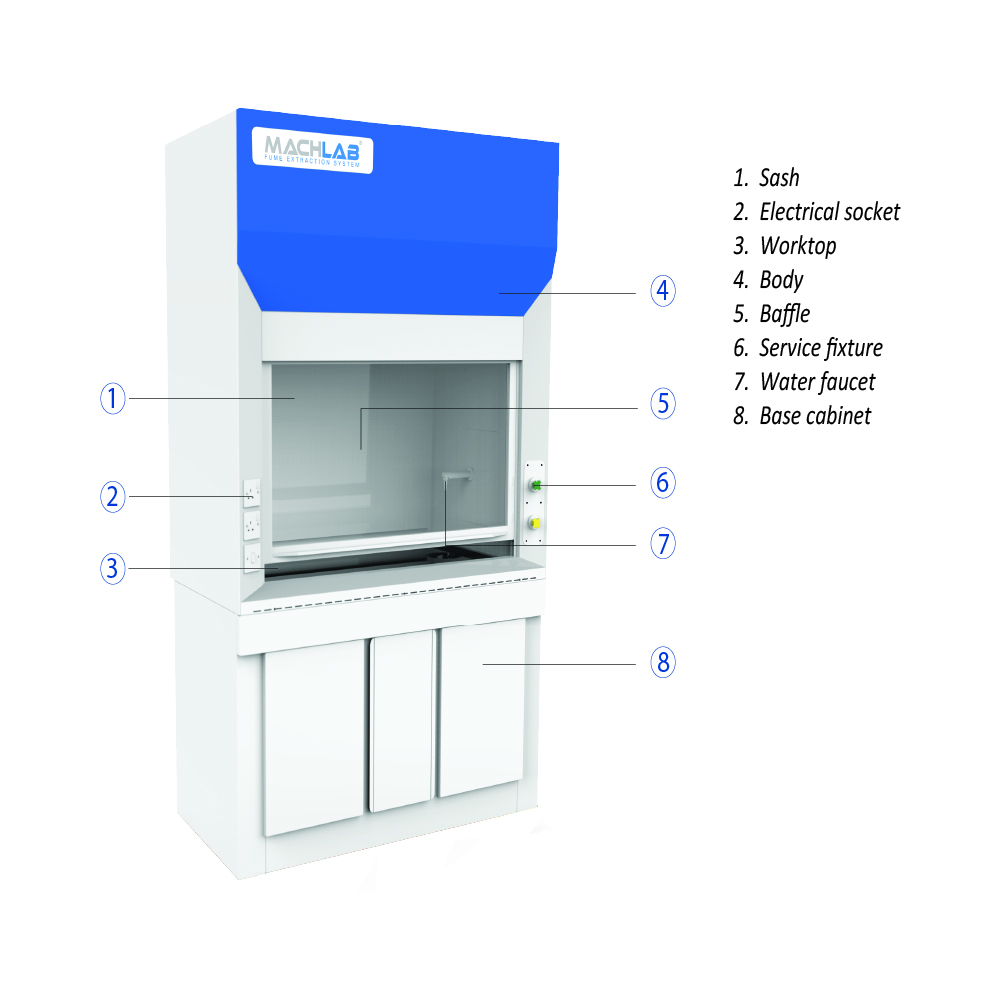

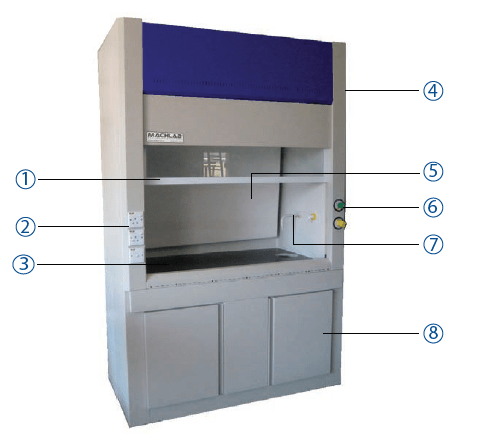

Specifications
- Sash
- Electrical socket
- Worktop
- Body
- Baffle
- Service fixture
- Water faucet
- Base cabinet

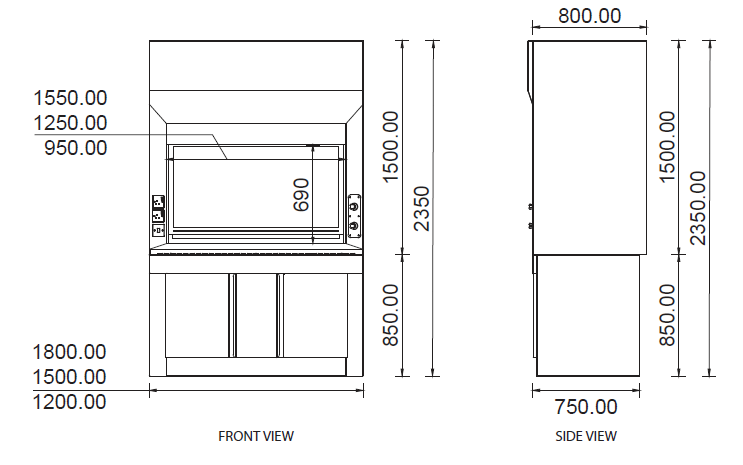

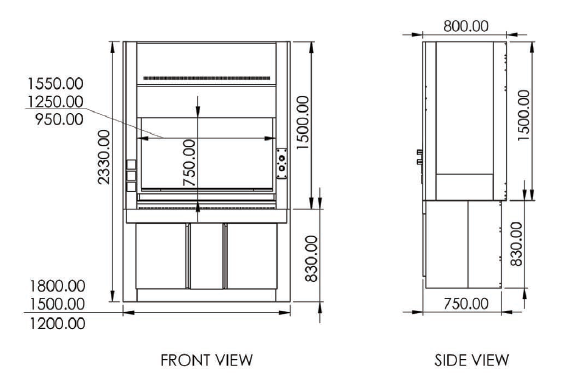

Dimensional
Features
- Double-walled design for fume hood body
- Industrial-grade electro-galvanized steel construction with epoxy powder finish
- High corrosion resistance
- Fiber reinforced polyester baffle for aerodynamic and rigidity
- Epoxy resin worktop with high chemical and heat resistance
- Integrated recessed handles to reduce work obstruction
- Customisable service fixture, water faucets and drip cup
- Customisable base cabinet; can be mounted on bench, base leg or safety cabinet
Customisation
Product Details
| Model | GPFH-4 | GPFH-5 | GPFH-6 |
| External Dimensions (mm) | 1200(L) x 800(W) x 2330(H) | 1500(L) x 800(W) x 2330(H) | 1800(L) x 800(W) x 2330(H) |
| Internal Dimensions (mm) | 950(L) x 630(W) x 1150(H) | 1250(L) x 630(W) x 1150(H) | 1550(L) x 630(W) x 1150(H) |
| Baffle | Fiber-reinforced polyester (FRP) | ||
| Material | 1mm(Thk) Electro-galvanized steel sheet with epoxy powder coating finish | ||
| Worktop | 19mm(Thk) Epoxy resin top | ||
| Sash | 5mm(Thk) Clear tempered glass/Polycarbonate/Acrylic | ||
| Full Sash Opening (mm) | 700(H) | ||
| Standard Features | – 1 Unit of 10 Watts Light – 2 Units of 13 Amp electrical socket – 1 Unit of light and fan dual switch – 1 Unit of gas and water outlet & remote control – 1 Unit of drip cup |
||
| Base Cabinet (Standard) | 1mm(Thk) Electro-galvanized steel sheet, epoxy powder coating finish | ||
| Power Consumption | 10W (Lighting) | ||
| Volumetric Flow Rate | 4ft: 800 – 1000 cfm 5ft: 1000 – 1200 cfm 6ft: 1200 – 1500 cfm |
||
| Face Velocity | 0.5 m/s at 400(H) | ||
