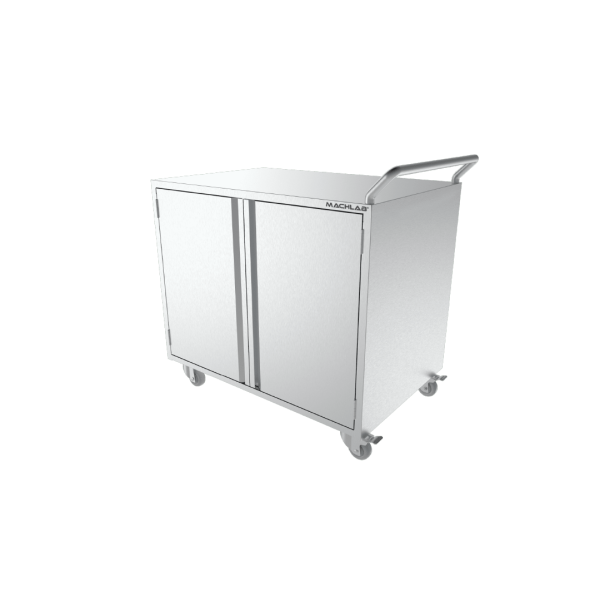

Swing Door Trolley

Swing door trolley is manufactured from stainless steel, which is ideal for cleanrooms and laboratories which require a focus on hygiene levels. Its fully welded structure tends to minimise contamination pockets. The swivel castors has allowed the trolley to track in any direction, transporting equipment to each corner of the room freely.Swing door trolley is manufactured from stainless steel, which is ideal for cleanrooms and laboratories which require a focus on hygiene levels. Its fully welded structure tends to minimise contamination pockets. The swivel castors has allowed the trolley to track in any direction, transporting equipment to each corner of the room freely.

Dimensional

Features

  • Easy to clean curvature edges
  • Available with internal shelf
  • Available with 2 smooth running lockable castors and 2 non-lockable castors
  • Total load capacity of 80 kg (Uniform distributed load)
  • Fully welded construction (Industrial grade)
  • Available in 304 and 316 stainless steel

Specifications

  • Manufactured of 20-gauge stainless steel (Shelf), 17-gauge stainless steel (Body and push bar)
  • Stainless steel fittings (Antirust & anti-corrosion)
  • Ø50 mm stainless steel castors c/w nylon wheels of 30 kg load capacity (2 with brakes and 2 without brakes)

Finishing Options

#4 Brushed and BA, Bright Annealed

#4 Brushed

#4 brushed finish is one of the most commonly used finishes due to its durability, scratch resistance and decorative nature. It has a muted luster appearance with a fine grain pattern comprised of parallel, short-intermittent grit lines for a linear effect.

BA, Bright Annealed

Bright annealed (BA) finishes are produced by heat treating the stainless steel to a mirror-like appearance. The annealing processes is closely monitored in a controlled atmosphere to prevent scale formation during annealing. The end result is a more corrosion resistant product that maintains good weldability and smoothness.

Products



Models CRTS-7050 CRTS-9060
Length (mm) 700 900
Depth (mm) 500 600
Height (mm) 900 900
