Demonstration Fume Hood
Demonstration fume hood is a ducted fume hood for general applications such as boiling, evaporation and drying as well as other applications that emits harmful fumes and vapours. The fume hood body is made of steel with 4 side tempered glass panel.

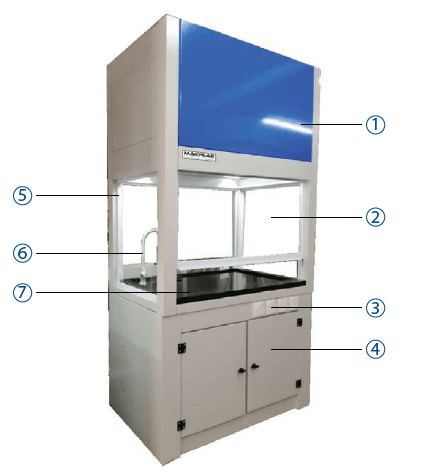

Specifications
- Body
- Sash
- Electrical socket
- Base cabinet
- Glass side panel
- Water faucet
- Worktop

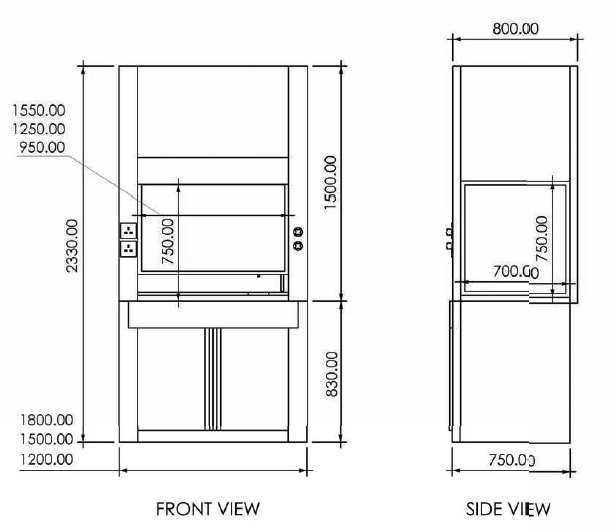

DimensionalÂ
Features
- Double-walled design for fume hood body
- Industrial-grade electro-galvanized steel construction with epoxy powder finish
- High corrosion resistance
- Side tempered glass window for viewing the demonstration
- Epoxy resin worktop with high chemical and heat resistance
- Customisable components such as service fixture, water faucets and drip cup
- Customisable base cabinet; can be mounted on bench, base leg or safety cabinet
Customisation

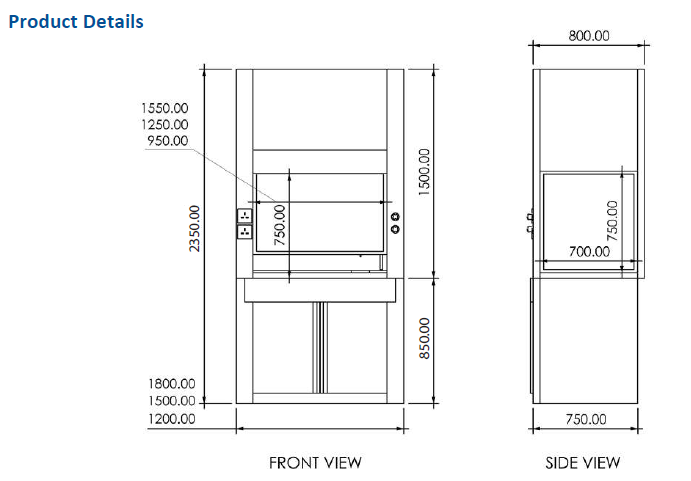

Product Details
| Model | DEFH-4 | DEFH-5 | DEFH-6 |
| External Dimensions (mm) | 1200(L) x 800(W) x 2350(H) | 1500(L) x 800(W) x 2350(H) | 1800(L) x 800(W) x 2350(H) |
| Internal Dimensions (mm) | 950(L) x 700(W) x 1100(H) | 1250(L) x 700(W) x 1100(H) | 1550(L) x 700(W) x 1100(H) |
| Body | 1.2mm(Thk) Electro-galvanized steel sheet with epoxy powder coating finish | ||
| Worktop | 25mm(Thk) Epoxy resin / 30mm(Thk) Phenolic resin c/w marine edge | ||
| Sash | 5mm(Thk) Clear glass / Polycarbonate / Acrylic / Tempered glass | ||
| Full Sash Opening (mm) | 700(H) | ||
| Standard Features | – 1 Unit of 10 Watts light – 2 Units of 13 Amp electrical socket – 1 Unit of light switch – 1 Unit of gas and water outlet & remote control. – 1 Unit of drip cup |
||
| Base Cabinet (Bottom) | 1.2mm(Thk) Electro-galvanized steel sheet with epoxy powder coating finish | ||
| Power Consumption | 10W (Lighting) | ||
| Volumetric Flow Rate | 4ft: 800 – 1000 cfm 5ft: 1000 – 1200 cfm 6ft: 1200 – 1500 cfm |
||
| Face Velocity | 0.5 m/s at > 300(H) | ||
