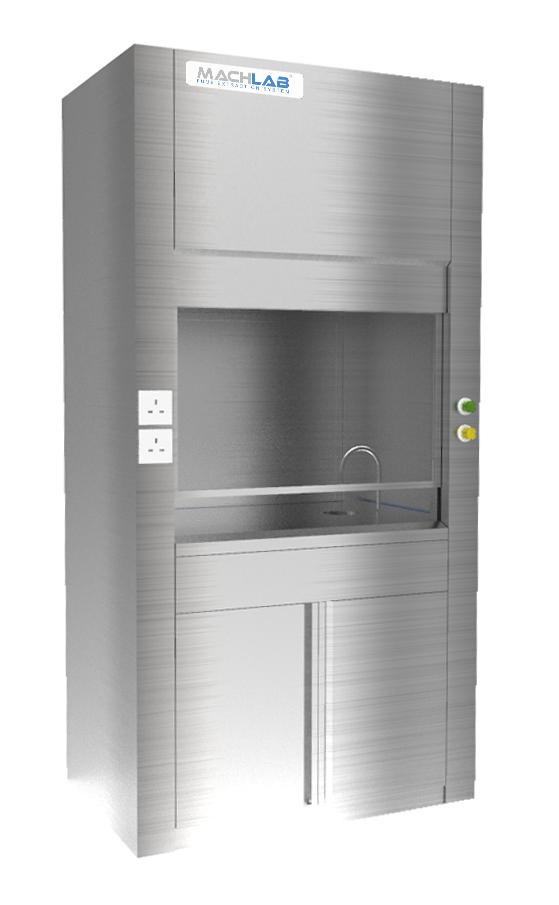

Stainless Steel Fume Hood
Stainless steel fume hood is a heavy-duty and sterile fume hood, usually used in cleanrooms in various industries such as pharmaceuticals, semi-conductor production as well as food & beverage.

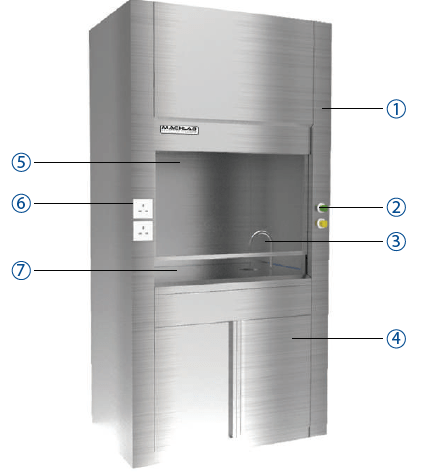

Specifications
1. Body
2. Service fixture
3. Water faucet
4. Base cabinet
5. Sash
6. Electrical socket
7. Worktop

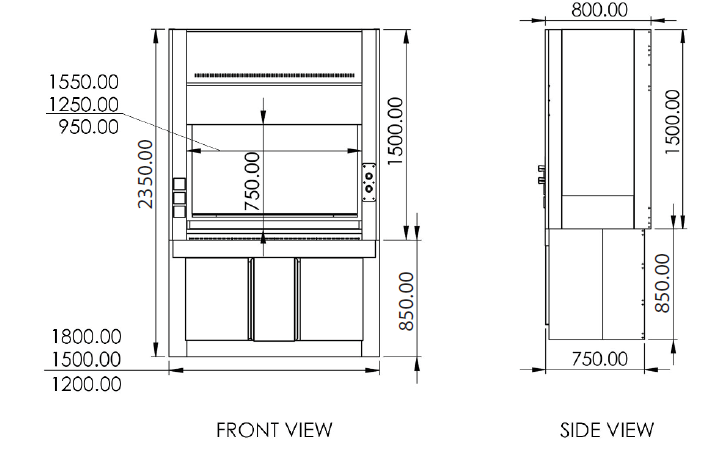

Dimensional
Features
- Industrial-grade stainless steel construction
- Heavy-duty, durable and sterile
- High heat and chemical resistance
- Corrosion resistance
- Easy to clean and sterilize
- Stainless steel worktop, faucets and sink
- Customisable components such as service fixture, water faucets and drip cup
- Customisable base cabinet; can be mounted on bench, base leg or safety cabinet
Customisation
Product Details
| Model | SSFH-4 | SSFH-5 | SSFH-6 |
| External Dimensions (mm) | 1200(L) x 800(W) x 2350(H) | 1500(L) x 800(W) x 2350(H) | 1800(L) x 800(W) x 2350(H) |
| Internal Dimensions (mm) | 950(L) x 700(W) x 1100(H) | 1250(L) x 700(W) x 1100(H) | 1550(L) x 700(W) x 1100(H) |
| Body | 1.2mmThk 304 Stainless steel sheet | ||
| Worktop | 1.2mm(Thk) 304 Stainless steel sheet / 25mm(Thk) Epoxy resin /30mm(Thk) Phenolic resin c/w marine edge | ||
| Sash | 5mm(Thk) Clear glass / Polycarbonate / Acrylic / Tempered glass | ||
| Full Sash Opening (mm) | 700(H) | ||
| Standard Features | – 1 Unit of 10 Watts light – 2 Units of 13 Amp electrical socket – 1 Unit of light switch – 1 Unit of gas and water outlet & remote control – 1 Unit of drip cup |
||
| Base Cabinet (Bottom) | 1.2mmThk 304 Stainless steel sheet | ||
| Power Consumption | 10W (Lighting) | ||
| Volumetric Flow Rate | 4ft: 800 – 1000 cfm 5ft: 1000 – 1200 cfm 6ft: 1200 – 1500 cfm |
||
| Face Velocity | 0.5 m/s at >300(H) | ||
