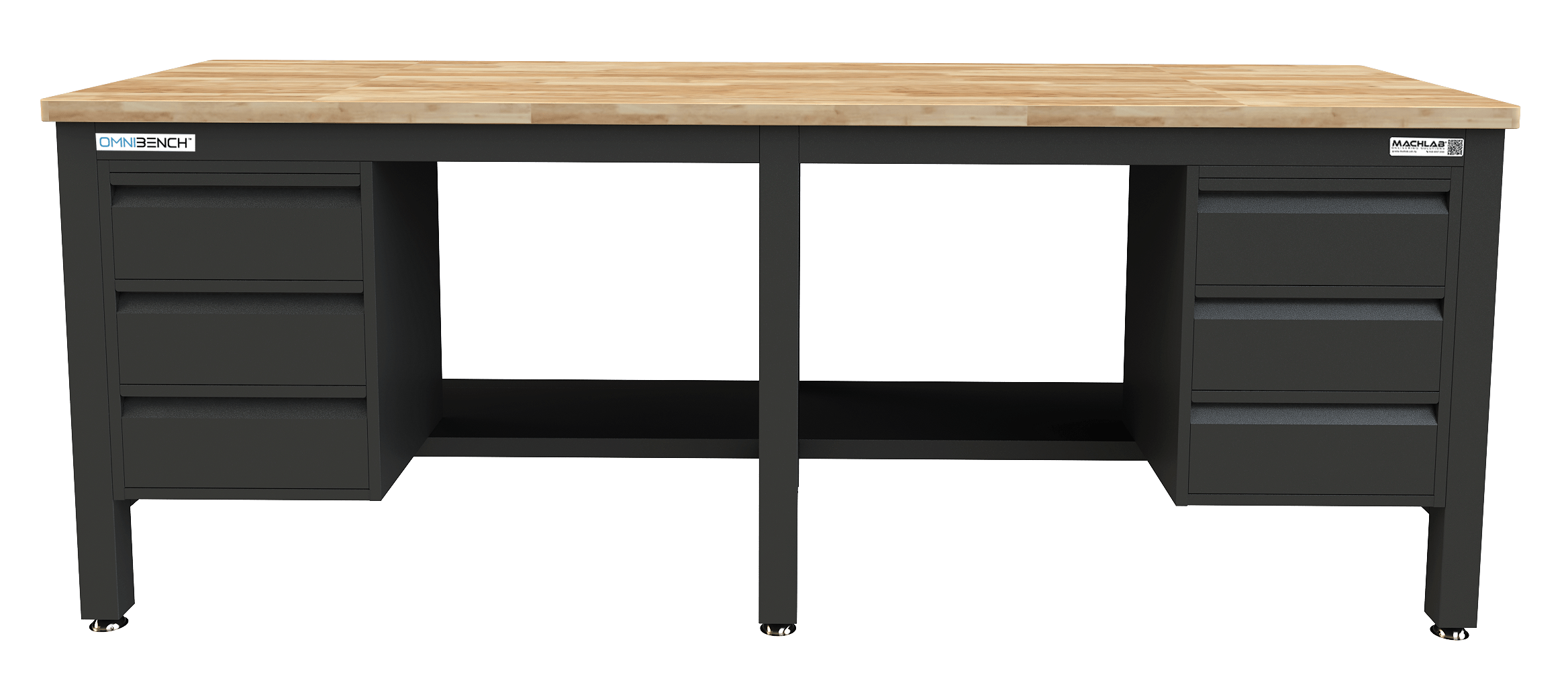

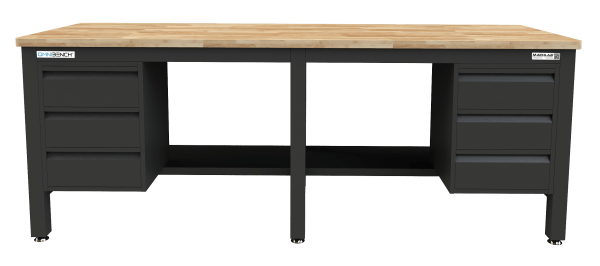

Type B 3D
OMNIBENCH™ heavy duty workbenches share common design qualities that have earned MACHLAB® a trusted reputation in the industry. Typical features include a wide variety of drawer and door combinations to meet every job and storage requirement; fully welded base frames for strong loading capacity; extensive selection of task-oriented materials for work surfaces.
Dimensional
![OB-24-3D-DIM](https://machlab.com.my/wp-content/uploads/2021/09/OB-24-3D-DIM.png)
Features
- 1000 kg UDL load capacity
- Fully welded joints, industrial grade construction
- Corrosion resistance* certified
- Heavy-duty adjustable stainless steel stabilisers
- 100 microns powder coating finish
*Except wood-based worktops.
Specifications
- Certified quality (ISO2178, ISO2813, ISO2409, ASTM B117, ASTM D3363)
- SHS 65x65x2.0mm steel base frame
- RHS 38x65x2.0mm steel crossbars
- Oven baked epoxy powder coated steel components
Finish Options
Powder coated steel components or stainless steel finish. Custom colour matching available upon request.
![2](https://machlab.com.my/wp-content/uploads/2021/09/2.png)
Work Surface Material Options
Work surface material available upon request.
![3](https://machlab.com.my/wp-content/uploads/2021/09/3.png)
Products
Models | OB-2175-3D | OB-2475-3D | OB-2190-3D | OB-2490-3D | OB-21105-3D | OB-24105-3D |
Width | 2100 | 2400 | 2100 | 2400 | 2100 | 2400 |
Depth | 750 | 750 | 900 | 900 | 1050 | 1050 |
Height** | 910-950 | 910-950 | 910-950 | 910-950 | 910-950 | 910-950 |
**Total height of workbench varies from 910mm to 950mm, depending on the selected worktop thickness.
